Propane Burners



Our Propane Burners are manufactured to be used with Aquatic Glassel/fireglass. We are the only company in the world successfully offering custom made propane burners that safely burn Aquatic Glassel /  fireglass.

NOTE* We do not currently Sell Propane Burner kits online. Please call us for a consultation as their are a lot of safety issues that must be dealt with before we can sell you a propape burner (909) 989 6129.

There are a lot of aspects of working with Propane please Click Here to Find out More.





This large fire fit required a 4 in 1 manifold, four 304 grade stainless steel quad rings along with a LP/propane HWI 2 pound system with 60" lead.  We can't wait to get the final pictures with the media installed.

propane fire pit with glass 1 propane fire pit with glass 2


Click on the video below.  You can watch full screen if you click the button with the 4 arrows pointing outwardly in the bottom right corner.

custom large propane fire pit








The Liptack's from Arizona had a modern backyard fire pit that needed some help.  They wanted to make sure they'd have a clean burn so we provided the propane system along with flex hoses, mounting brackets, outdoor stainless steel linear burner and 48" Propane Hose with Regulator.

propane fire pit with glass 2 propane fire pit with glass 5


They topped it all of crushed lava, 1/4" Black and Iridized Scarlet ED Diamonds.
Glen Liptack






Ty Havas didn't want the ordinary Propane pan for his fireplace.  He wanted a pan that would be more than functional.  So after some sketches and discussions we began making a cardboard mock up.

propane fire pit with fireglass propane fire pit with fireglass 2


He would ultimately receive a Stainless Steel pan with angled legs and 3 inch depth to accommodate the burner and fireglass.  Here the cardboard mock-up along with his fireplace measurements (which you can see denoted on the cardboard piece below the mock-up) assure that we attain the correct size and appropriate design.

propane fire pit with fireglass 3 propane fire pit with fireglass 4



The fireplace is emptied out and it becomes apparent that its in dire need of a fresh coat of paint.  And since the custom pan was built with legs, the fireplace floor will be left visible and as a result fresh tile will be added to the hearth.


custom propane fireplace pan with glass custom propane fireplace pan with glass 2



The fireplace re-design is complete with two custom reflective sterling silver panels on either side of the pan to give the illusion of the fireplace being larger.


custom propane fireplace pan with glass 3 custom propane fireplace pan with glass 4



The custom stainless steel pan is filled 1/4" Bronze, 1/4" Bronze Reflective, Copper Ruby Red, Yellowish Opal Orange, and Red Brown.


custom propane fireplace pan with glass 5 custom propane fireplace pan with glass 6



A wonderful transformation.

Ty Havas





This custom concrete top was built by our customer Tim Masloski. And though it looks amazingly cool; it was also amazingly heavy!  Like Enrique Castro, the design superseded the the functionality of the piece.   The 3" thick top could have been 1" thick with a form underneath.

Fire Pit Pan and propane Burner Fire Pit Pan and propane Burner 2
Fire Pit Pan and propane Burner 3 Fire Pit Pan and propane Burner 4



Tim brought in the piece,  and we went to work installing our custom propane burner system with an aluminum base, 38" linear Burner, Thermocoupler/pilot system, 100,000 BTU regulator and 15' quick disconnect hose.

Fire Pit Pan and propane Burner 5 Fire Pit Pan and propane Burner 6


We test the flame output, on both high and low settings to make sure the burner works properly.

custom Fire Pit Pan and Burner custom Fire Pit Pan and Burners


The media was 3/16" Clear, Super Black, Clear Blocks with gravel as filler.

Fire Pit Pan and propane Burner 7 Fire Pit Pan and Burner


Turned out great Tim.

Fire Pit Pan and Burner Fire Pit Pan and Burner







Brian Jensen's propane fire pit, with a 36" square pan and 24" Stainless Steel double fire ring under a combination of 1/4" Azurlite and 3/8" Azurilte.

Propane Burner ring with fire rocks Propane Burner ring with fire rocks 2
Propane Burner ring with fire rocks 3 Propane Burner ring with fire rocks 4








Michael built this awesome propane fire table with a tree trunk base. Below the propane Valve and air mixer is installed below the table top; allowing for easy access while keeping it out of sight.

Custom propane Drift Wood fire Table Custom propane Drift Wood fire Table



A 10" Stainless Steel Center-less ring surrounds his unique rock center piece which sits a-top our crushed lava rock.


Custom propane Drift Wood fire Table 3 Custom propane Drift Wood fire Table 4


Check out Michaels website to see more of his custom work.

Drift Wood Table





Round Pan Burner

Below is a 36" aluminum pan burner for propane with a 3" outside lip. These can be made to fit any fire pit, fire table of fire fit for natural gas or propane. We can build anything! This pan has a thermo-coupler for safety and air mixer built in to eliminate soot.  Contact us with your questions 909 989-6129.

aluminum pan for propane burner aluminum propane fire pit with fire glass aluminum propane fire pit with fire glass 2

Here is an example of a 30" base with a double 24" FPPK (fire pit propane kit) stainless steel burner. You will notice the igniter and thermo coupler (heat switch for safety). The base plate is to prevent propane from leaking into the fire pit below.

aluminum propane fire pit with fire glass 4 fire pit stainless steel burner aluminum propane fire pit with fire glass 5




A Restaurant Propane Fire Pit Converted to Work with Fireglass

This fireplace is in Shawano, Wisconsin at the Cotton Patch Restaurant. E mail Patti and tell here you saw her fireplace.  Here are a few before shots of the fireplace before the conversion began.

Propane fireplace with fireglass Propane fireplace with fireglass 5 patti 3

This was a custom propane burner which was designed to cleanly burn under the glass!  The fireplace has Bronze, Bronze Reflective, Ice, Gold and Yellow Amber Topper.


Propane fireplace with fireglass 6 patti 4


And here is what Patti had to say:

Hi Ed,


Well, it's been about two weeks since I installed the new fireplace, and it is the talk of this sleepy little town. Because of the "Ice" on the top, it has been nicknamed the "Fire and Ice" fireplace. I just placed an order for a pound each of 1/4" Gold, Yellow Amber Topper and Clear Ice. I think it needs a smidgen more color, and since the Ice is the big feature, I decided to add a little more. I have to say, I didn't think I would like the ice, but it looks amazing!


Thank you Ed and Jimmy for all of your help and hand holding over the past few months. I will take more pictures when I add the new products.

Thanks again,

Patti





Custom Center-Less Burner Ring

These are our round burner rings without a center hub.  These unique center-less rings are available in either steel or stainless steel.

centerless burner ring 10 inch 3 custom center-less fire pit burner ring






Brushed Aluminum Propane Pan

The pan below is a brushed aluminum pan with sculpted legs. This propane pan is now offered with an adapter on the back-side for remote control use (battery operated).

indoor aluminum pan propane burner Aluminum Propane burner pan for fireplace
alum 4 indoor aluminum pan propane burner alum 5

Here is the same pan, being tested.

burning custom aluminum propane burner alum 7 alum 8

Now we add the fireglass a Multi Mix for the photo shoot only. The pan is 2" with 3" legs. This pan was custom made for our client in Cabo San Lucas, Mexico.

aluminum pan for contemporary fireplace alum 14 alum 11
alum 12 aluminum pan for contemporary fireplace alum 13






Custom Install of a Propane Pan in a Copper Bowl

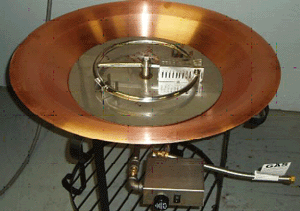

Our client Crista here in California bought this copper bowl with a lid and we installed a propane burner inside.  We used one of our FPPK kits (fire pit propane kit).

crista 6 outdoor custom firebowl with propane burner
crista 3 crista 2

Here is the Bowl with the FPPK installed on top of the table Crista built to hold the copper pan/ bowl.

crista 1 cb 1 outdoor custom firebowl with propane burner







Ventless Fireplace #1 - Natural Gas

The ventless burner below was sent to our customer in Georgia. The glass that we tested it with was Multi Mix a combination of various fireglass.   This type of burner can also be used with Natural Gas. Notice the stainless box tray underneath the upper pan.

indoor fireplace with ventless burner indoor ventless fireplace
tj 10
tj 7
tj 4 tj 3 tj 2
contemporary indoor ventless fire pit tj 15

Ventless burner with fireglass
tj 16

tj 17
tj 12






Ventless Fireplace #2 - Propane


The ventless burner below is made of steel and there were actually 4 of these made. We covered the front and sides with 5" skirts. These pictures were taken just after the testing. This is a propane ventless burner and these are available in natural gas as well.

indoor propane ventless burner vent less 2 propane ventless burner for fire pit
vent less 6
indoor ventless propane burner

The pictures below are of the same burner as above with Azurlite installed. These 4 ventless burners are being installed in Georgia. If you dream it, design it, think of it, we can build it as we are the innovators in the industry.

indoor ventless propane burner with fire glass v 6
v 7 indoor ventless propane burner with fireplace glass v 12








Ventless Fireplace - Propane

The propane ventless burner below was designed in a stainless steel pan.

custom ventless fire ring vent less 3
vent less 8 custom ventless fire ring vent less 7

You'll notice where the sensor is in order to work.  The Stainless steel pan was filled with Gold fireglass for the test burn.

ventless fire pit burner sensor vent less 19
vent less 9 ventless fireplace vent less 12
contemporary indoor ventless fire pit vent less 18
vent less 14 indoor ventless fireplace with fire glass vent less 22








The Roxbury Hotel

The fire pit table is at the Roxbury Hotel and we will show you the process from beginning to end.  We start with the framing and making sure we understand how the gas line comes in and out out of the floor.

custom commercial outdoor firepit roxbury 5 roxbury 6

This was a propane installation with our FPPK burner. The colors used were: 1/4" Starfire, 1/2" Starfire, Gold, Lime Green Topper, Pale Olive Green Topper, Olive Green Topper, a little bit of wood and tile and here you go!

roxbury 8 outdoor custom commercial fireplace
roxbury 1 custom hotel fire pit roxbury 2

Roxbury Hotel, a cool fire pit!

custom built commercial propane fire pit






Fireglass With An Unconverted Propane Burner

The fire pit below is a failed attempt to burn fireglass with a regular propane burner.  Remember you can't burn propane with fireglass without modification!  If you try this, this is what it will look like.

converting fireplace to propane burner sooting burned fireglass from propane firepit stan 8

You need to calibrate the burner or it will back fire, burn black or explode!  We won't tell you who tried this but we will tell you we did fix the issue and now the customer is very happy. We did use Azurlite with Azurlite Reflective.

propane sooting on fireglass stan 13
stan 3 propane fireplace gone wrong stan 1








A Propane Fire Pit - Done Right!

The pictures below will show you how to install a propane burner and valve in your fire pit without drilling a hole in the side of your fire pit with our FPPK (fire pit propane kit).

DIY propane fire pit fppk 2

This was install in Calabasas California with Bronze and Bronze Reflective on top. The fire pit has 10" solid sides which made this a good candidate for the FPPK to be installed on the inside wall.

fppk 3 Outdoor propane firepit with propane burner fppk 6

This propane fire pit was calibrated so that every valve and ring we installed would eliminate back flow and any problems that may happen. We also installed the proper type of air mixer to insure a clean burn; eliminating the soot produced by propane. If you have a propane fire pit you know what I am talking about.

do it yourself fire pit propane kit fppk 8 fppk 7





Go To Page 2





Other Burners of Interest


Ribbon Burners (Click Here)

reddish 23 strausse 1 ribbon 4



Custom Burners (Click Here)

zig zag 5 Hex Burner 4 S Burner propane or natural gas burner



Ventless Burner   (Click Here)
v 1 v 7 vent less 8




DesignED   (Click Here)
daniel 13 draw 4 KOJIS 7



Pans Burners & Baskets   (Click Here)
415 3 Propane Ribbon 7 Lisa Powell 4




The next fireplace is from Chris Ackopiantz in Palos Verdes California.

Chris lives in a condo complex with only wood burning fireplaces. Chris received permission from his complex to add a propane fed fireplace. Burning wood is not only dirty and nasty, it is very unhealthful as well.
Here are his pictures from beginning to end:
The glass he used was a:

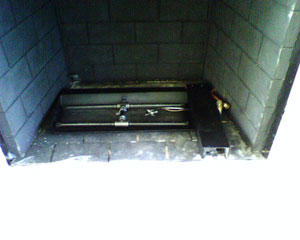

Underneath the glass there is a pan to contain the propane.
Chris Ackopiantz
Chris Ackopiantz
Chris Ackopiantz
Chris Ackopiantz
Chris Ackopiantz
Chris Ackopiantz
Chris Ackopiantz
Chris Ackopiantz
Chris Ackopiantz
Chris Ackopiantz
Chris Ackopiantz
Chris Ackopiantz
Chris Ackopiantz



The next Wine Barrel Fire Pit was built be Shaun Ibe.

We supplied all of the parts, knowledge base and Shaun built one really nice Wine Barrel Fire pit! We will explain as we move forward

Shaun Ibe Wine Barrel Fire Pit
Shaun used up all of his old corks to line the top with and then he had a piece of glass made to cover the corks. Be sure you have the top made with tempered glass! Teh glasss that was used was

1/4" Clear Base Glass

Platinum Base Glass

Gold Ruby Topper

Shaun Ibe Wine Barrel Fire Pit

See the Wine Barrel Parts Page!

Shaun Ibe Wine Barrel Fire Pit
We supply you with creativity, parts, support, imagination and give you license to be creative on your own, after all, that's what we do and who we are!
